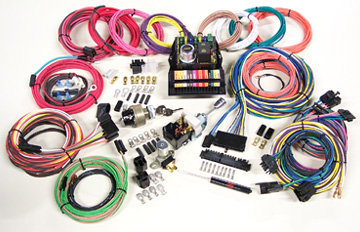

American Autowire Highway 15 Wiring Harness
| American Autowire Highway 15 Modular Panel System |
 |
|
The Highway 15 is a brute in a small package. Built with the same heavy
duty internal components as those used in our Highway 22 panel, it can
easily handle the "basic "power requirements of any vehicle.
Its size makes it the perfect power center for roadsters, T- buckets,
kit cars, race cars or any other vehicle where basic operational circuits
are required. Heavy gauge lead wires are provided for battery, ignition,
accessory, horn, turn signal flasher, and 4-way hazard flasher. Best
of all, it is also designed around the same "cook book "installation
approach employed with all of our systems.
Easy clamp-style system makes adding and removing wires easy! No Terminals!
No Crimping! No Screws!
Ignition switch Included. Connections included for either dash or column mounted
ignition switches.
All needed terminals and connectors to finish the basic wiring system are included.
Complete wiring for headlights. (Headlight switch included with internal circuit
breaker.)
Mounting legs are moveable to allow for various mounting situations. Alternator
regulator diode included.
Micro-Relays for Horn and signals.
15 output connections! Floor mounted dimmer switch Included! Heat Resistant
Nylon 6/6 Construction Throughout! 3 position head-light switch. Designed
with internal circuit breaker protection (Billet knob included). Unique design
of "gauge cluster disconnect ". Makes connecting up to 8 gauges
simple and convenient. Heavy 8-Gauge alternator power feed wire! High heat
and abrasion resistant XLPE wire. Wire withstands -60oF to +275°F! |
• Complete engine compartment wiring for oil pressure, water temperature,
starter, neutral safety switch, ignition switch, distributor coil, main
power feed, alternator and regulator.
• Coil leads supplied with connector for GM HEI distributor. Bypass wire
included for point type distributors.
• Headlight circuit complete with circuit breaker for headlight switches
without integral circuit breaker.
• Complete wiring for all running lights, brake lights and directional
lights, and license lights and third brake lights.
• Dash wiring included for electric gauges such as oil pressure, water
temp., voltmeter, fuel gauge, and tachometer. Dash lighting for all gauges, speedometer,
turn signal & high beam indicator lights.
• Complete wiring for steering column including horn, directional signal
switch and 4-way hazard switch. Standard 3-7/8" GM column connector (both
male and female) are provided to directly plug-in to any .69-.74 GM steering
columns. Connector bodies and terminals are pro- vided to also make mating to
any make column a breeze!
• Complete wiring for radio, heat and A/C, and wipers.
• Spare battery and accessory circuits
• All fuses, flashers, and relays included.
• Horn relay on panel.
• Standard turn signal and hazard flasher circuits.
• Circuit breaker capability on 1 battery and 1 accessory circuit.
• Wire circuit ink-jet labeling every 2 "or 3 ".
• Heavy duty terminals and internal power buss.
• Rugged factory terminals and terminations within the fuse panel assembly.
• Color schematics and easy to understand installation instructions included.
• Patented Hooke’s Law, Screw down connection system
|
|
|
Regular Retail Price: $319.00
Your Price Only: $276.00
|
|
|
