Superflames Flamethrower Kit Instructions

SUPERFLAMES!

Installation and Operating Instructions

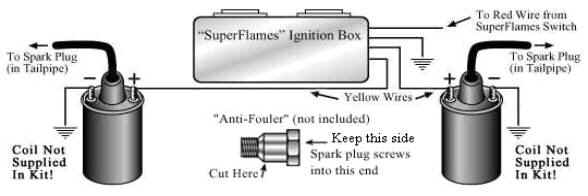

superflame flame thrower kit instalation instructrions

Mount switch on dash. Red wire with fuse goes to switched power on fuse block.
Run Long RED wire to SUPERFLAMES ignition box at rear of vehicle.
Cut positive wire on coil as above. Splice in both WHITE wires to cut ends.For Ford and Chrysler electronic ignition systems, cut wire on coil labeled "+". On G.M. HEI units, cut wire labeled "Batt." This part of the system will Kill engine temporarily

4. Mount ignition box in trunk, away from moisture. Make sure no metal objects come in contact with transistors (oval shaped devices) on top of box. Ground black wire from box. Connect RED wire from box to RED wire from switch.

5. Run each YELLOW wire to any make 12V coil. Ground negative ( - ) side of coil and coil case. .

6. Use "anti-foulers" (available at auto parts stores) in the tailpipes as the threaded receptacle for the spark plug. Cut off the (male) portion of the anti-fouler that exists beyond the threads needed to retain the plug and throw it away. Drill hole in tailpipe big enough to slip remaining female portion of the anti-fouler into. Weld or braze into place 8 to 12 inches from end of the tailpipe. Connect Spark Plug wire to coil and to plug. Use a quality plug wire.

7. To Test: Turn on vehicle ignition – DO NOT START! Flip the switch and verify a visible spark in each tailpipe. Return the switch to normal position and start the vehicle. Allow the engine and pipes to warm up. Check for any possibilities for objects behind car that could be damaged by flames. Rev up the engine to 3000 – 4000 RPM. Flip switch to kill vehicle ignition. As engine winds down, pump the gas repeatedly fast as possible. Before engine stalls, raise foot off of gas pedal, and return the switch to normal position. Vehicle should idle normally.
